Thin film nickel-chromium precision resistors in sizes from 0201 to 2512, tight tolerance 0.01%, 0.1% low TCR 1ppm-50 ppm, 1-3Mohm resistance range for key product designs. High power, high reliability, high stability, high precision resistance. Thin-film chip resistors are the perfect choice for most areas of a wide range of electronics. Advanced thin film technology for high power, ultra-high power, corrosion protection, sulfur resistance, automotive, AEC-Q200 qualified availability.

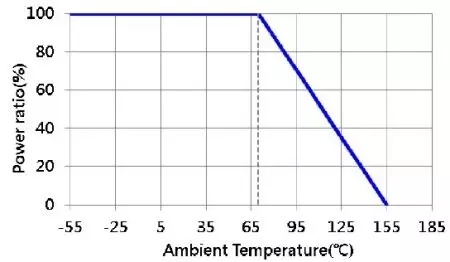

Derating curve
CHARACTERISTICS
- ADVANCED THIN FILM TECHNOLOGY
- VERY TIGHT TOLERANCES DOWN TO ±0.01%
- VERY LOW TCR TO ±1PPM/°C-Automotive-grade precision resistors, AEC-Q200 compliant with automotive industry standards
- Certified lead-free
-Special materials, designs and processing for high sulfur applications
-Immunity to moisture, moisture and sulfur, suitable for very harsh environments
Application areas
-Automotive automation
- Medical equipment - test / measurement equipment - printer equipment - automatic equipment controller
- converter
- communication equipment
, mobile phones, GPS, PDA
Standard electrical specifications
Type/Size Rated Power@70°C Maximum operating/overload voltage Resistance range Temperature coefficient PPM/°C
AR01(0201) 1/32W 15V/30V 49.9 ohm-33 Kohm ±25/55
AR02(0402) 1/16W 25V/50V 4.7 ohm-511 Kohm ±25/55
AR03(0603) 1/16W 50V/100V 4.7 ohm-1 Mohm ±25/55
AR05(0805) 1/10W 100V/200V 4.7 ohm-2 Mohm ±25/55
AR06(1206) 1/8W 150V/300V 4.7 ohm-2.49 Mohm ±25/55
AR13(1210) 1/4W 150V/300V 4.7 ohm-2.49 Mohm ±25/55
AR10(2010) 1/4W 150V/300V 4.7 ohm-3 Mohm ±25/55
AR12(2512) 1/2W 150V/300V 4.7 ohm-3 Mohm ±25/55
Suitable for temperatures from -55°C to +155°CAR03DTC1003
AR03FTD1001
AR06BTS2501
AR06FTC2490
AR05FTDW1002
AR05FTDW5102
AR06FTDV2001
AR05BTCW5002 in stock!For more parameters, please see < details in the >!
-
