Automotive anti-sulfur resistance, 0201~2512, 1ohm~10Mohm. High sulfur resistance inner electrode material and special terminal structure are adopted to increase the anti-sulfurization strength. The silver resistance of the inner electrode is vulcanized. Sulfate environments include sulfur-containing gases produced near hot springs or volcanoes or through the burning of crude oil, even outdoor equipment under air pollution can be affected. The silver sulfide produced by this reaction affects the conductivity, so the resistor is disconnected.
Viking's anti-sulfur resistors are ideal for preventing damage to your electronic devices in high-sulfur environments.

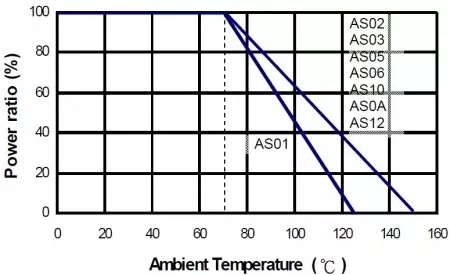

Derating curveScope

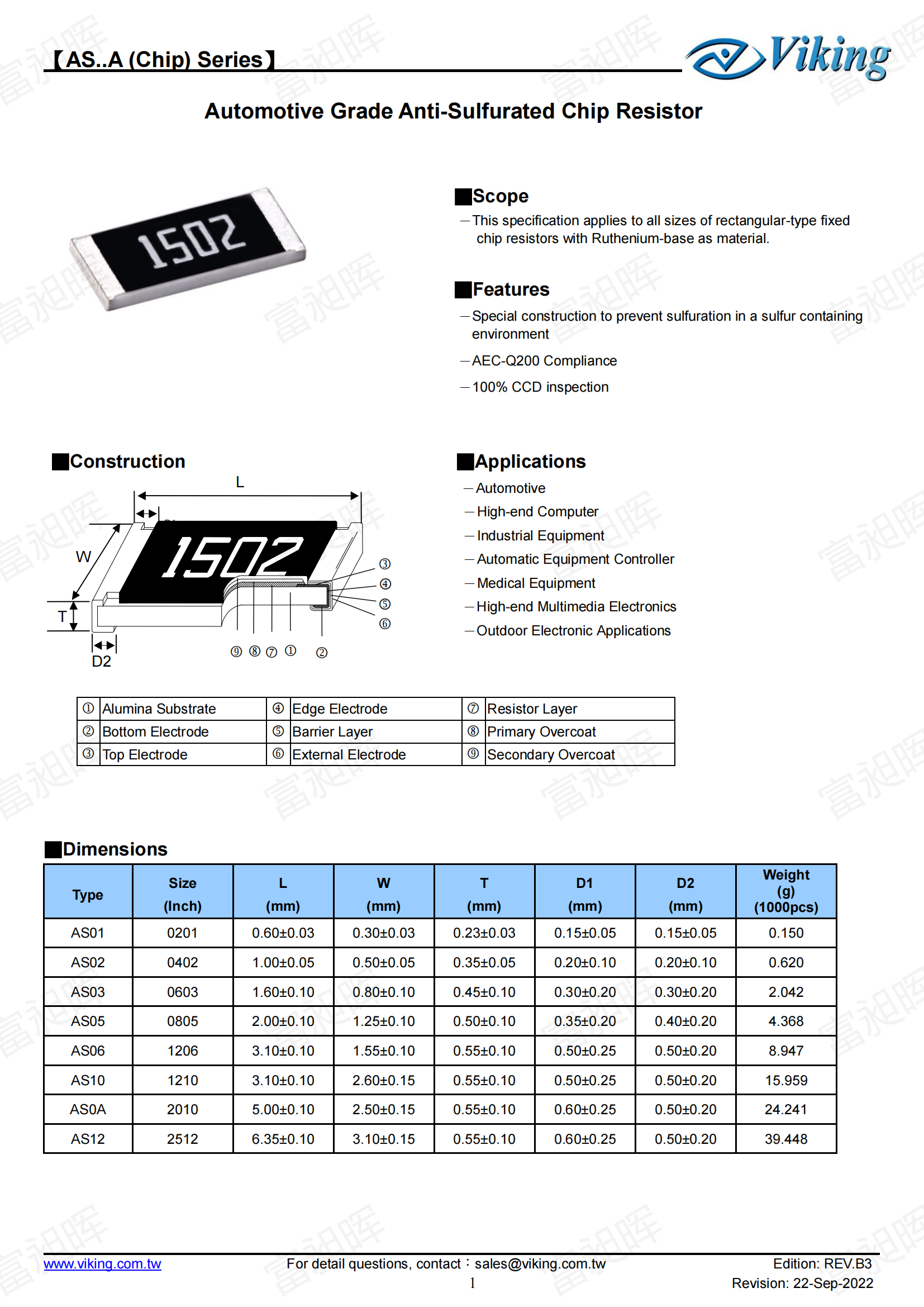

: This specification applies to all sizes of rectangular fixed chip resistors made of ruthenium.
Features
a special structure that prevents vulcanization in sulfur-containing environments.
AEC-Q200 compliant.
100% CCD detection.
Application
car.
High-end computers.
Industrial equipment.
Automatic device controller.
Medical equipment.
High-end multimedia electronics.
Outdoor electronic applications.
AS03FTE1001A
AS03FTE1002A
AS03FTE1502A
AS03FTE3650A
AS03FTE8201A
AS03FTE2052A
AS03FTE4990A
AS03JT-R0R0A
AS03FTE4701A
AS03FTE1201A
AS03FTE5101A
AS03FTE2701A
AS03FTE2492A
AS03FTE0100A
AS05FTE5101A
AS05FTE1001A
AS05FTE1002A
AS05FTE2002A
AS05FTE0100A
AS05JT-R0R0A AS05FTE4990A AS06FTE1200A
In stock!
For more parameters, please see < details in the >! -
