High voltage resistors, sizes from 0402 to 2512, resistance values up to 100M ohms, 2512 maximum overload 4000V, 2010 maximum overload 3000V.
The thick film is specially designed to achieve high operating voltage and stability of chip chip resistors. One of the key roles of resistance in a circuit is to sense high voltage by dividing voltage. Each resistor has a rated voltage and a maximum operating voltage, which must not be exceeded when used. This specification applies to all sizes of rectangular fixed chip resistors made of ruthenium. The HVR series offers high voltages to reduce the number of resistors used. Cost and space savings. Generally, the higher the resistance, the higher the voltage.

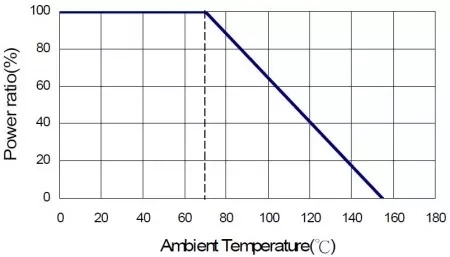

Derating curve
range
: This specification applies to all sizes of rectangular fixed chip resistors made of ruthenium.
Feature
: Highly reliable multilayer electrode structure.
Greater component and equipment reliability.
Excellent performance under high pressure.
Reduce the size of the final device.
IEC 62368-1 & IEC 60950-1 Safety Certificate
from UL Demko for application inverters
Outdoor Equipment Converter
High Pulse Equipment
HVR12FTET7502 HVR0AFTEU1004 HVR0AJTHU2405
HVR12FTFT1504
HVR12FTET3003
HVR06FTEV2003 in stock!
For more parameters, please see < details in the >! -
