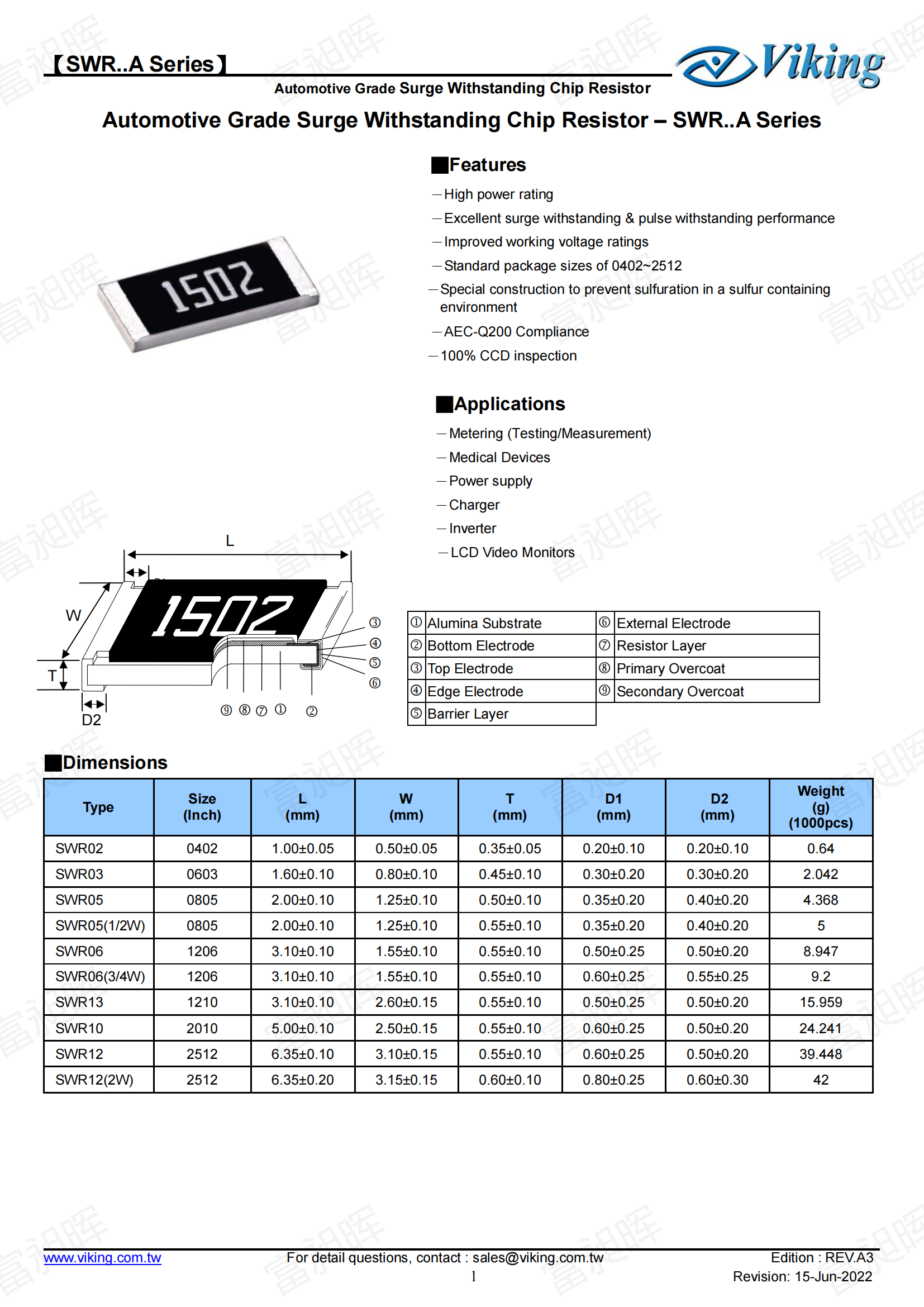

- Commodity name: Automotive grade surge withstand voltage chip resistor (SWR. A series)
- Commodity ID: 1122612299022618624

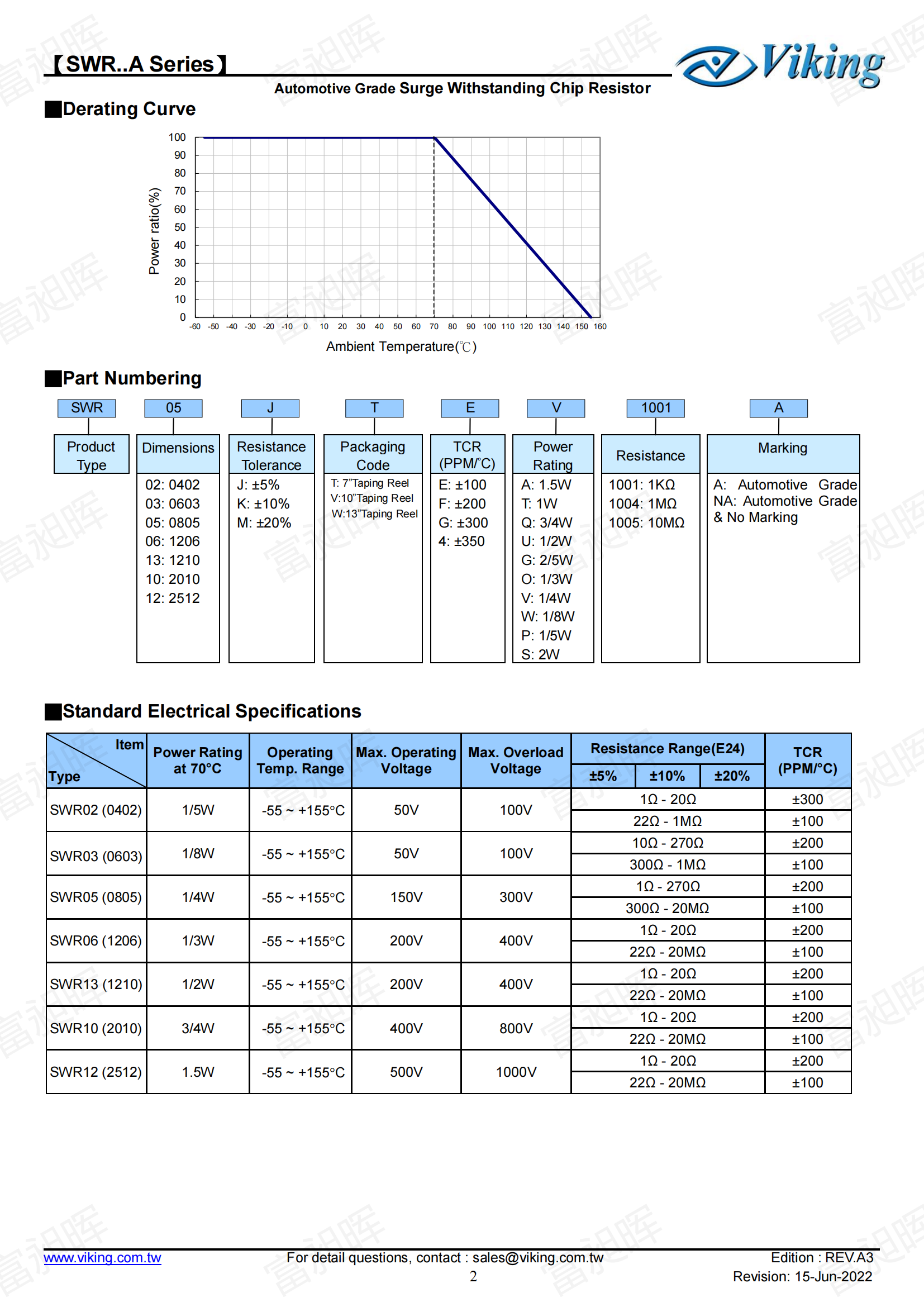

Inbound/pulse protection is essential for all circuit designs. SWR series, size from 0402-2512, tolerance 5%~10%, 1ohm~20Mohm. More circuit design becomes more critical. Inbound/pulse protection is essential for all circuit designs. Viking's SWR series, untrimmed resistance layer maintains superior pulse and ESD withstand resistors suitable for protecting electronic circuits from extreme pulses and surges. In circuits where large currents are applied instantaneously or where ESD is applied, pulse- or surge-resistant resistors are required. A surge means an overload such as ESD or a high voltage of short duration. Anti-surge resistance prevents damage caused by instantaneous application of high power.
high power rating.

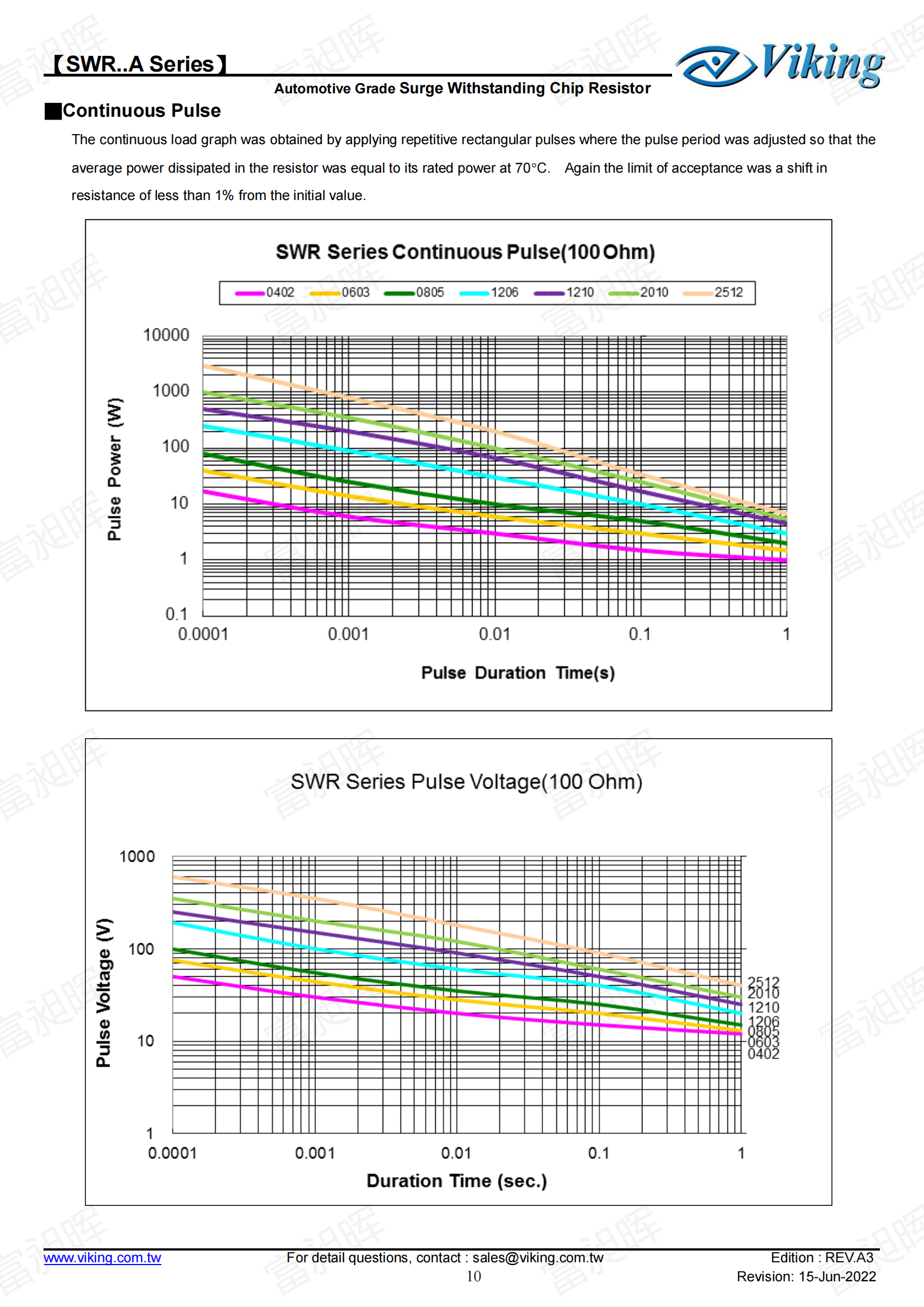

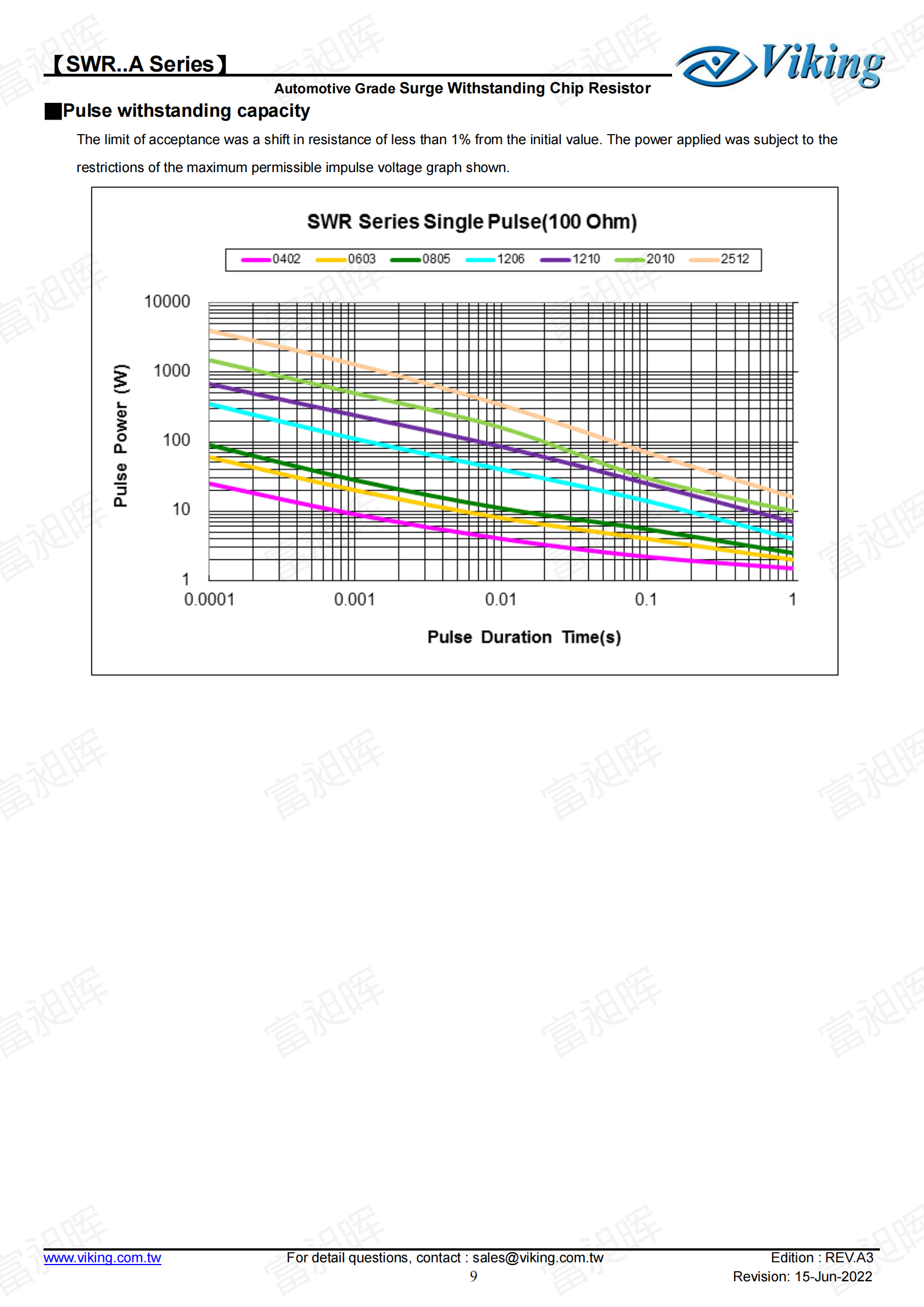

Excellent surge and pulse tolerance.
Improved operating voltage rating.
The standard package size is 0402~2512.

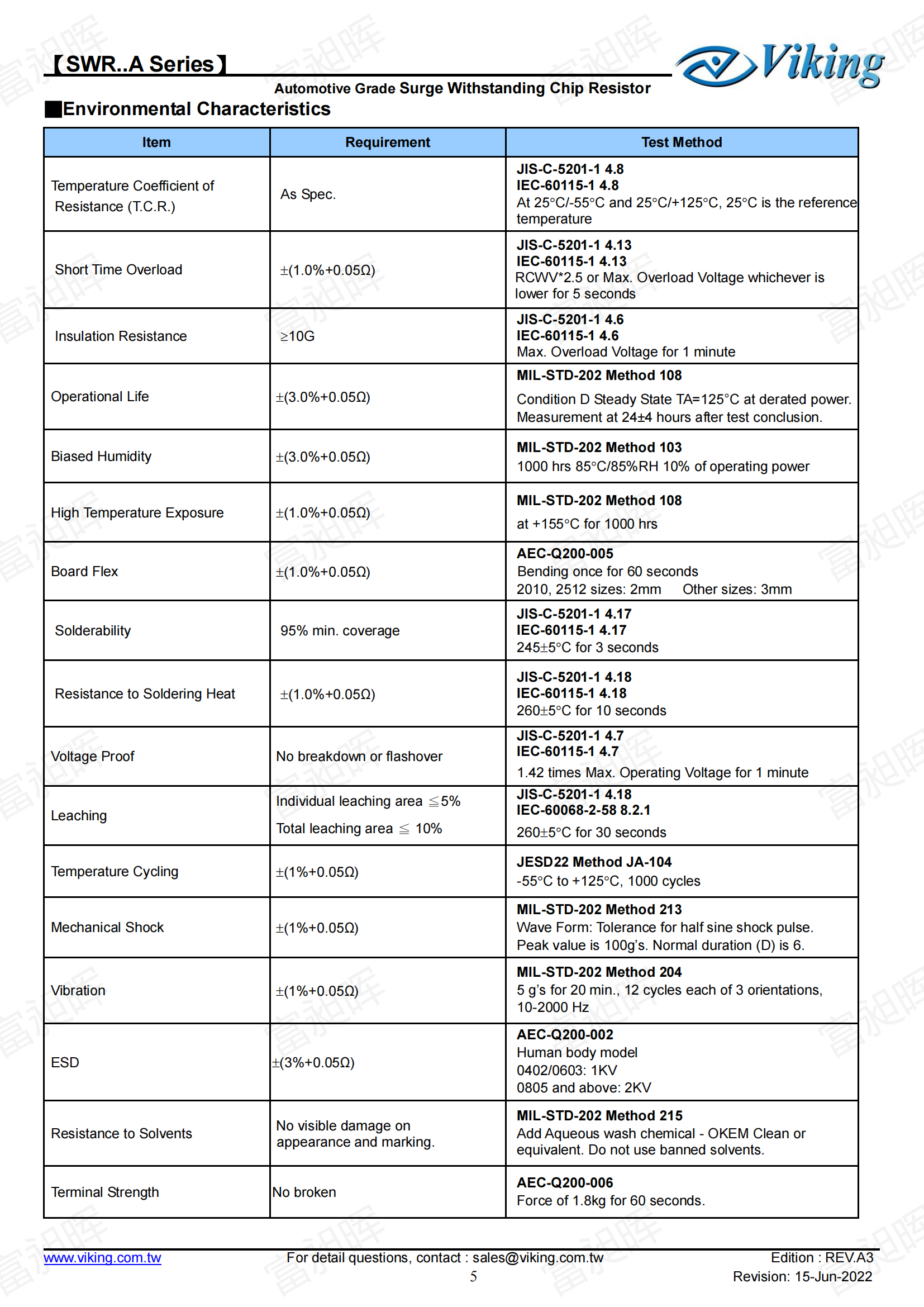

AEC-Q200 compliance to prevent vulcanization in sulfur-containing environments.
100% CCD Inspection
, Metrology (Test/Measurement)
LCD Video Monitor
SWR12JTEA0680A In stock!
For more parameters, please see < details in the >!
