LRP 1206 Ultra High Power 1W, 2512 3W Surface Mount Power Strip Resistor. Metal strip low ohmic resistor for inducing high currents and high temperature resistance. Low TCR for stable resistance drift at high temperatures. The resistance range is as wide as 200mohm. Withstands high temperature performance up to 170/°C.
Metal bar resistors provide 5x the rated power for shorter times and higher reliability. Excellent space-saving solution for high power rather than thick film, cost-effective in the market.

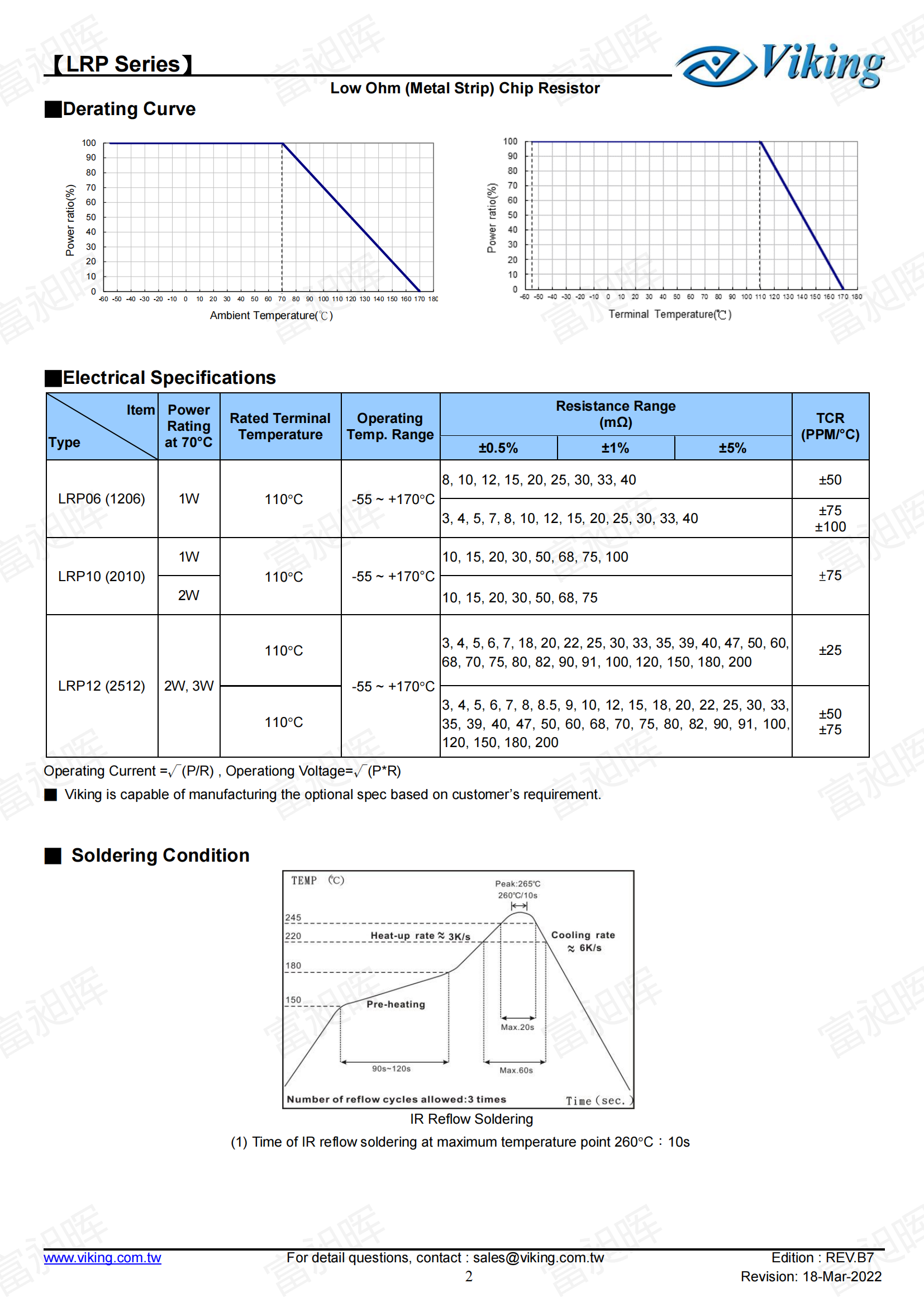

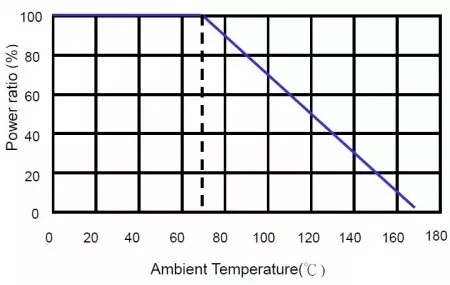

Derating curveFeatures
:
Customizable resistance down to ±25 PPM/°C with low resistance low inductance < 5nH
AEC-Q200 compliance
, sulfur
resistance
independent of sulfur environmentsPb-free and RoHS
compliant applications
NB (for power management) MB (for power management)
SWPS (DC-DC converters, chargers, adapters)
Monitor (for power management)
LRP12FTDRR020N LRP12FTDRR050N
LRP12FTDSR022 LRP12FTWRR010
LRP12FTDSR200 in stock!
More parameters can be found in the < details >! -
