Metal oxide film resistors (MOF series)

  • Description
  • Details
    • Commodity name: Metal oxide film resistors (MOF series)
    • Commodity ID: 1122612291116355584

    Metal oxide film lead resistors offer excellent long-term stability, high surge and overload capability, and a good controllable temperature coefficient for use in telecommunications and medical applications.

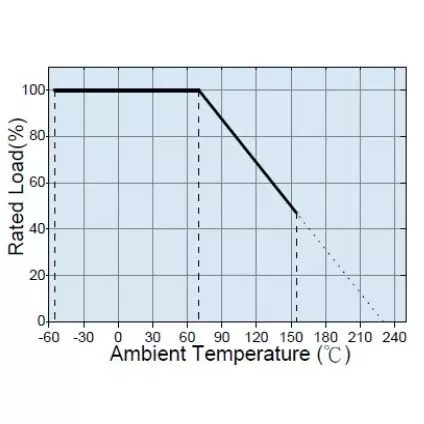

    Derating curve

    by excellent long-term stability.
    High surge/overload capability.
    Wide range of resistance: 0.1Ω~22MΩ.
    Controlled temperature coefficient.
    Resistance standard tolerance: ±5% (±2%, 1% consult the manufacturer).
    High electrical and mechanical stability and reliability.

    of telecommunications
    medical equipment

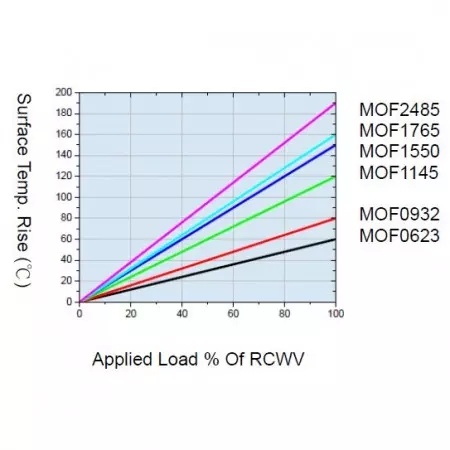

    Hot spot temperature


    MOF1765JTFD5100 in stock!
    For more parameters, please refer to < details in the >!
