Current Sensing Thick Film Chip Resistors (RS Series)

Category:

Sense Resistor

Message
  • Description
  • Details
    • Commodity name: Current Sensing Thick Film Chip Resistors (RS Series)
    • Commodity ID: 1122612288503304192

    General-purpose thick film current sensing, size 0402~2512, resistance range 10m~1R. Low cost. Fast delivery. High reliability current sense resistors.

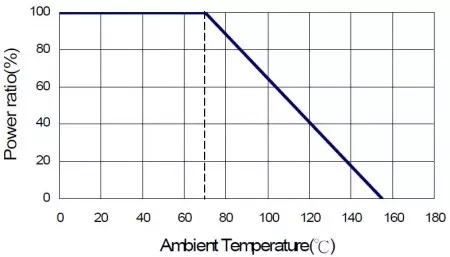

    Derating curve

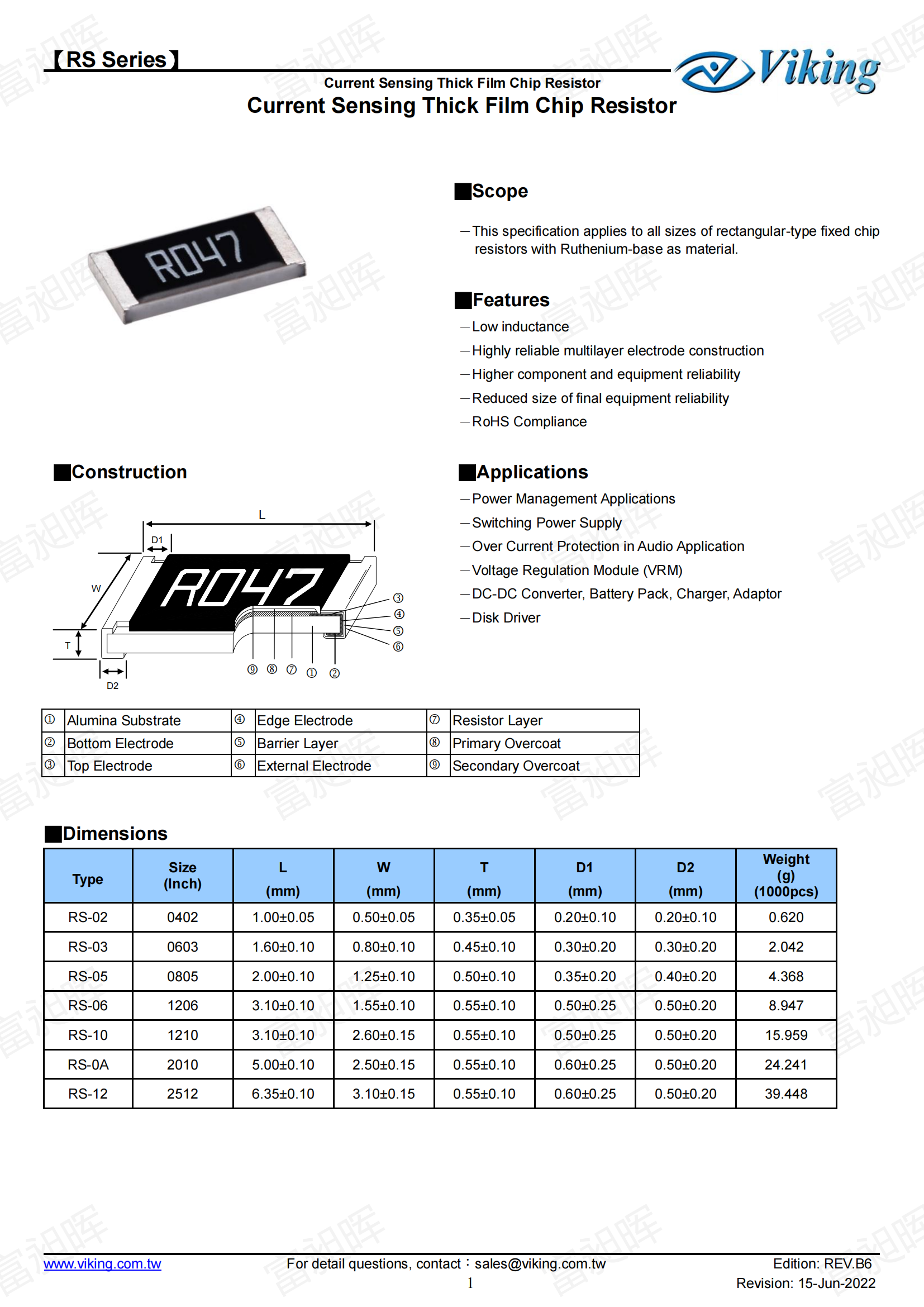

    Scope
    : This specification applies to all sizes of rectangular fixed chip resistors made of ruthenium.

    Characteristic
    low inductance.
    Highly reliable multilayer electrode construction.
    Greater component and equipment reliability.
    Reduced size of final equipment reliability.
    RoHS compliance.

    Application
    : Power Management: Overcurrent Protection
    Regulator Module (VRM) in Switching
    Power Supplies
    , Audio Applications
    DC-DC converter, battery pack, charger, adapter
    disk driver



    RS-12FL4-0R75 in stock!
    For more parameters, please refer to < details in the >!
