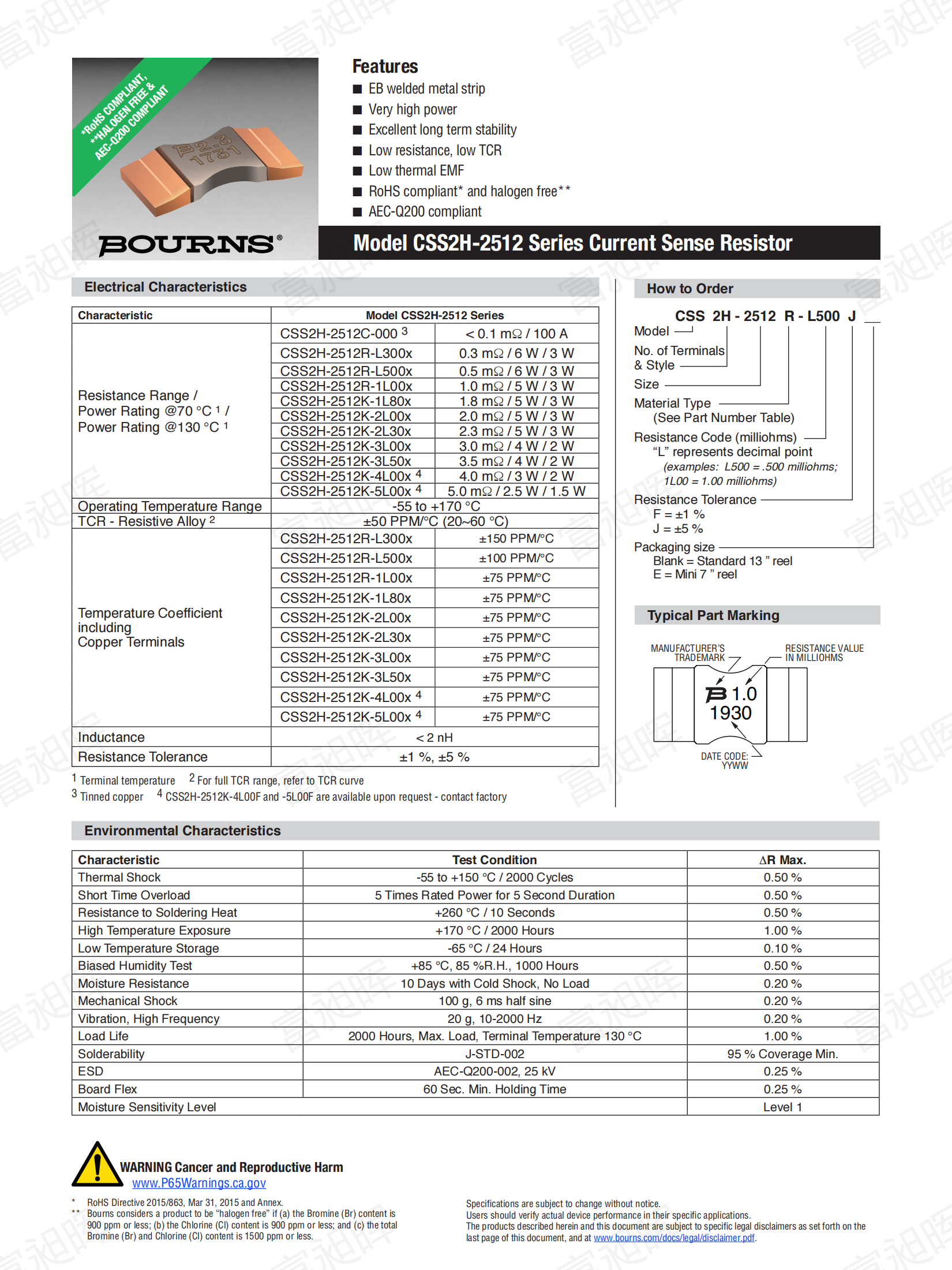

Current divider CSS2H-2512K series

The products are widely used in the automotive electronic control industry, industrial control, hydraulic control, motor control, new energy vehicle field, solar energy field, military industry
Category:

Sense Resistor

Message
  • Description
  • Details
    • Commodity name: Current divider CSS2H-2512K series
    • Commodity ID: 1122612270379716608

    The products are widely used in the automotive electronic control industry, industrial control, hydraulic control, motor control, new energy vehicle field, solar energy field, military industry

    features
    size0603 to 2512 Thick Film Chips0805 to 1206 Metal Foil Chips0805 to 2512 Metal Strip Chips

    : 2512 to 5931 EB Welding Splitters, 6918 to 8536 Metric EB Welding Splitters

    Rated power at 70 °C0.1 to 50 watts
    Resistance range25 microohms to 9.1 ohms
    Resistance tolerance±0.5%、±1%、±5%
    Temperature coefficient±50±200 ppm/°C
    Operating temperature range–55 to +155/+170 °C

    Available features
    according to RoHS standard*,
    suitable for most types of welding processes
    , EB welding shunts
    comply with AEC-Q200
    , very high power resistance, very low resistance

    Excellent long-term stability
    , low inductance value
    , low thermal electromotive force
    , low TCR
    , available in four terminal designs
    : bare copper and tinned terminals
    are sulfur resistant

    Application

    Telecom specifications in the consumer
    industry have resistance ranges from 0.3 to 5 milliohms



    Tolerance 1% / 5%
    Temperature Coefficient ±50 ppm
    Power (W) 1.5 to 6 W
    Introduction/Package Style Surface mount
    materials Metallic elements



    CSS2H-2512K-2L00F in stock!
    For more parameters, please refer to < details in the >!
