Features
- constant power up to 10W
- very low resistance - extremely high pulse power
- excellent long-term stability
- low self-heating
Advantages / Features
- Four-terminal connection (PBV)
- Can withstand 30 seconds + 350°C welding temperature
- Can be installed with heat sink
Technical parameter
resistance range: 0.0005 mOhm-1 mOhm
accuracy: 0.5 / 1 / 5%
temperature coefficient: <75ppm/k (20°C-60°C)<b55> Applicable temperature: -125°C to +3°C
Rated power: 10 / 15W
thermal internal resistance: <500K/W<b10> insulation voltage: 0V
inductance value: <5nH<b2000> stability (rated load) deviation: <70.001% after 1h (TK=0°C)<b5> (TK=terminal temperature).
PBV-R010-F1-1.0
PBV-R<>-F<>-<>.<> in stock!

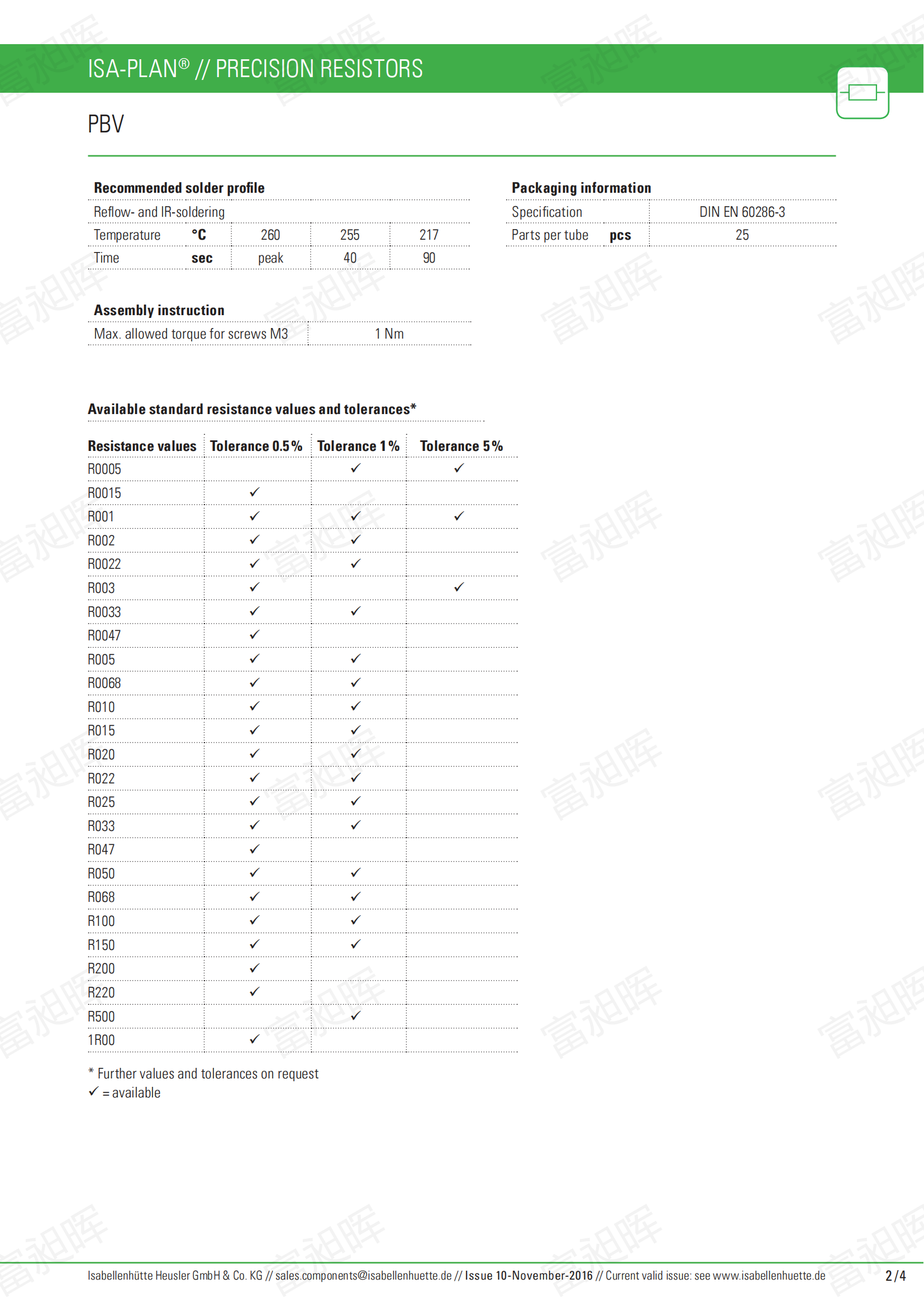

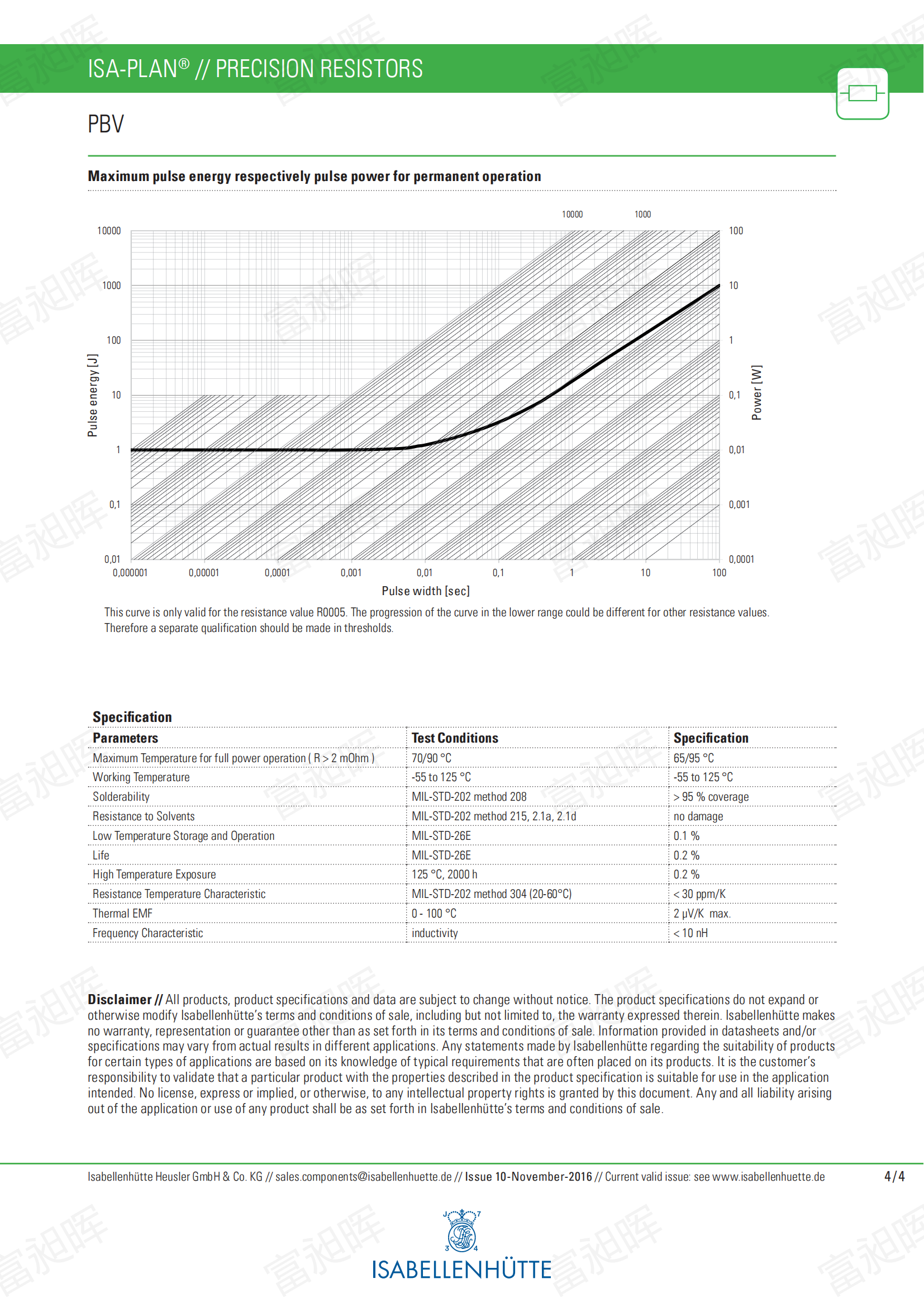

For more parameters, please see < details in the >! -
PBV Series
