Characteristics
- Constant power up to 12W
- Very low resistance value
- Ideal for mounting on DCB/IMS substrates
- Standard pad size
- High energy electron beam welded composites
- AEC-Q200 qualified
Advantages / Features
- 2 terminal connection
- can withstand 30 seconds + 350°C welding high temperature - high
power
- excellent long-term stability

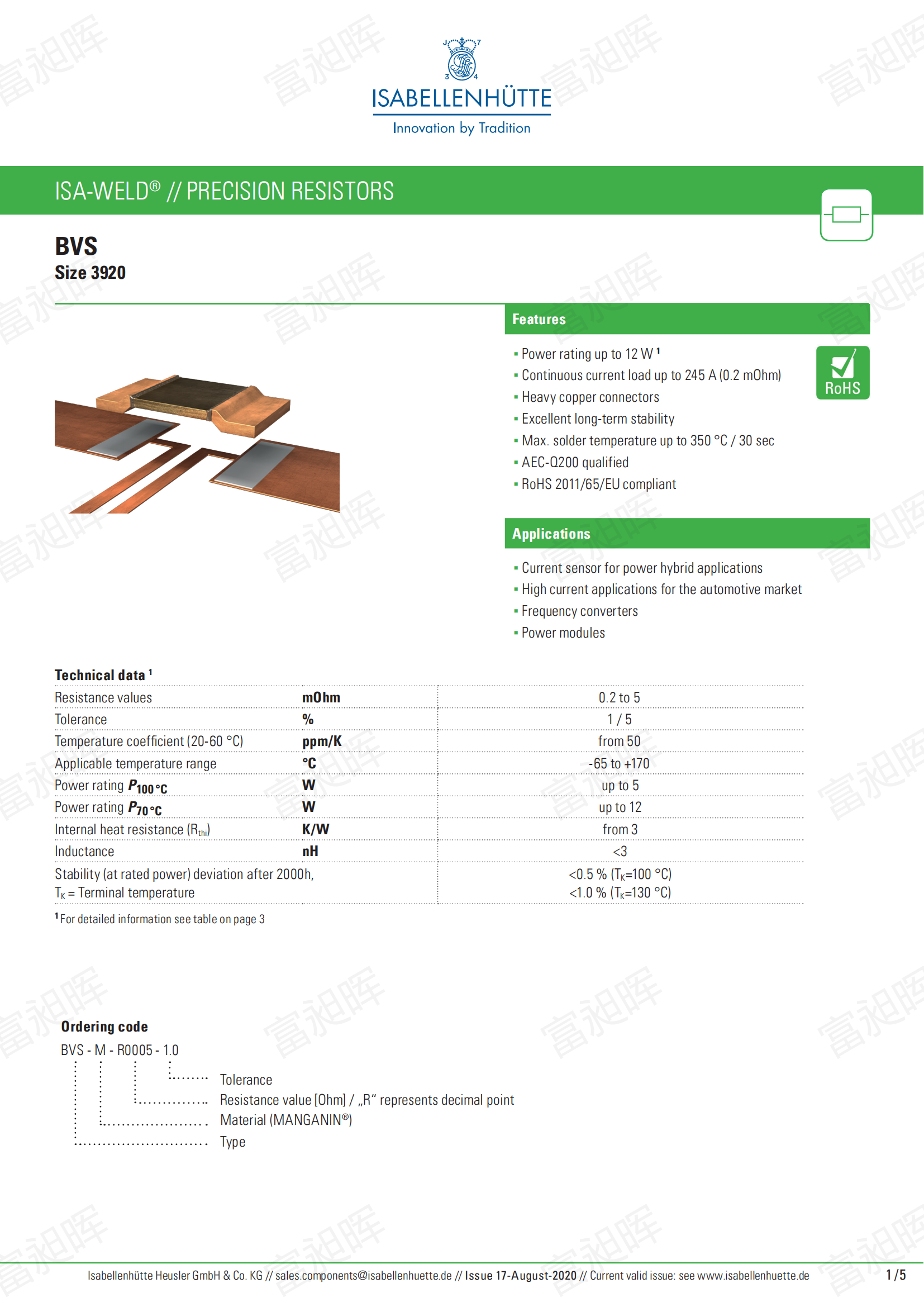

Technical parameter
resistance range: 0.2 mOhm-5 mOhm
accuracy: 1% / 5% temperature coefficient:
min. 50ppm/k (20°C-60°C)
Applicable temperature: -65°C to +170°C
Rated power (100°C): Maximum 5W Rated power (70°C): Maximum 12W
thermal internal resistance: Minimum 3K/W
Inductance value: <3nH<b0> Stability (rated load) Deviation: <5.2000% after 100h(TK=1°C)(TK=Terminal temperature)<b0><2000.130% after 001h( TK＝1℃)<b0>
BVS-A-R002-1.0
BVS-A-R003-1.0
BVS-A-R004-1.0
BVS-A-R001-5.0
BVS-A-R002-1.0-T
BVS-I-R0005-1.0 BVS-M-R001-1.0 BVS-M-R0002-1.0
BVS-Z-R<>-<>.<> in stock!
For more parameters, please see < details in the >! -
BVS Series
